  • Marconi (Marconi Corporation plc. ) : NT-ADSLi (69.0009.400.00-A005 / 69.0009.400.00-A001)

    69.0009.400.00-A005 (Ethernet Interface)

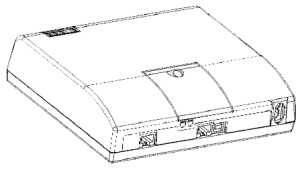

    NT-ADSLi / 69.0009.400.00-A005 (Ethernet Interface) The NT-ADSLi (69.0009.400.00-A005) forms the terminating point for the ADSL signal at the subscriber end and the interface to the subscriber. The subscriber interface is a 10BaseT interface in accordance with IEEE 802.3. The NT-ADSLi includes features such as a fully-fledged IP router with automatic configuration and address assignment from a central server.
    The NT-ADSLi is powered by a 230 V supply voltage.
    The NT-ADSLi is accommodated in a plastic housing and is designed for wall mounting.
    (The modem does provide an USB port, which seems to be not connected internally.)
    Chipset
    unknown
    Features
    • Ethernet Interface:
      Standard 10BaseT as per IEEE-802.3
      Transmission speed 10 Mbit/s
      Connectors RJ45, NT-ADSLi with no internal crossover
    • ADSL Interface:
      Standard ITU-T G.992.1
      Transmission speed up to 8Mbit/s downstream; up to 1Mbit/s upstream
      Connectors RJ45

    All information is taken from the manual provided with the modem.

    The modem (69.0009.400.00-A005) was delivered between 2000-2002 and does not comply to the UR2 specification of German Telekom. This is due to changes of the specification after the making of the modem. However, the modem (69.0009.400.00-A001) does comply with UR2 requirements.

    In Germany, the modem is sold by EWEtel, HEAG MediaNet and others as modem hardware in their DSL products.

    Please submit / mail further information about this Modem to me.

    Technology: ADSL (G.992.1)
    Linux support: Yes
    Price per Modem/NIC:  EUR 99


    external WWW: Marconi Corporation plc. : http://www.marconi.com http://www.marconi.com
