Fujitsu (Fujitsu Microelectronics Europe ) : MB86695

FireStream50 ATM PCI SAR Controller

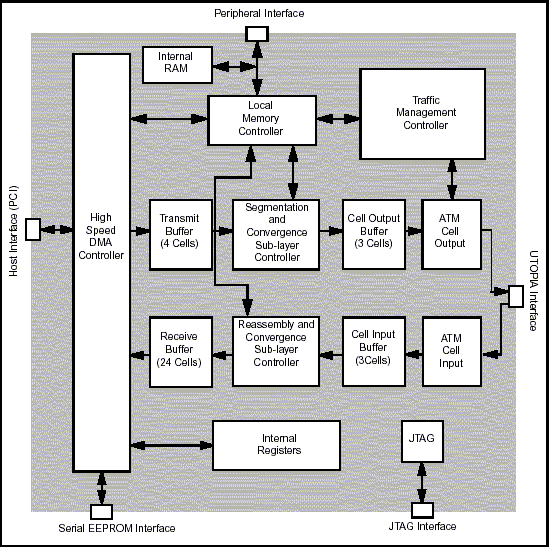

The FireStream50 is a low cost ATM protocol controller which autonomously terminates ATM Adaptation Layer standard Type 5 (AAL5). ATM cells are received through a UTOPIA v2.01 compliant interface. Simultaneous segmentation and reassembly can be achieved at an average rate in excess of 52Mbps. The device contains embedded memory to support 32 virtual circuits (VCs). All ATM Forum traffic classes (ABR, VBR, CBR, UBR) are supported with traffic management to ATM Forum TM4.0 specification for all 32 VCs. The FireStream50 is suited to many ATM applications including ATM switches, home gateways, integrated access devices, set-top boxes, routers and adaptor cards.

Features Broadband ISDN Adaptation Layer standard Type 5 (AAL5) Simultaneous segmentation and reassembly on up to 32VCs ABR, VBR, CBR and UBR traffic classes with traffic management compliant to TM4.0 Autonomous Resource Management (RM) cell handling 33MHz 32-bit PCI (v2.1) interface supporting the 3.3V signalling environment, and tolerant to 5V Write-only interface for PDU handling with copy of SAR registers maintained in host memory Configuration through PCI slave port, PCI configuration optionally through serial EEPROM Support for scatter/gather mode Transparent ATM cell and cell payload modes (AAL0) with support for Operations and Maintenance (OAM) cells 8 bit, up to 52MHz UTOPIA v2.01 level1/2 compliant cell stream interface with master/slave modes and optional HEC checking on receive Embedded memory, no external memory requirement 16 bit Peripheral interface JTAG compliant to IEEE1149.1 Fabricated in CMOS technology with CMOS/TTL compatible 5V tolerant I/O -40°C to +85°C Industrial temperature range

Information used to be available at:
http://www.fmal.fujitsu.com/systemsolutions/broadband_ATM_01.html

Technology:	0.25µ CMOS
Package:	SQFP 208 Pin
